Tough Combination Rope

Tough Combination Rope: CBR3

Material: Polypropylene and wire

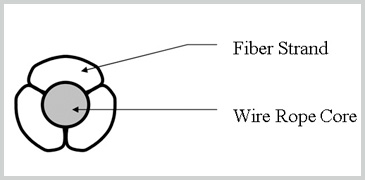

Construction: 3 strand fiber rope twisted around the wire core that consists of 24 wires of 6 strands
Direction of twist: Z twist
Color: Light gray

Dia WR Dia Weight (kg/200m) Breaking
Strength (t) 		Breaking
Strength (kN)
(mm) (mm) WR Fiber Total
32 12 96 99 195 6.68 65.5
14 130 93 223 9.09 89.1
16 170 86 256 11.9 117
34 12 96 114 210 6.68 65.5
14 130 108 238 9.09 89.1
16 170 101 271 11.9 117
36 12 96 130 226 6.68 65.5
14 130 124 254 9.09 89.1
16 170 117 287 11.9 117
38 14 130 140 270 9.09 89.1
16 170 134 304 11.9 117
18 216 126 342 15.0 147
40 14 130 158 288 9.1 89.2
16 170 151 321 11.9 117
18 216 144 360 15.0 147
42 16 170 170 340 11.9 117
18 216 162 378 15.0 147
20 266 153 419 18.5 181
44 16 170 189 359 11.9 117
18 216 181 397 15.0 147
20 266 173 439 18.5 181
46 16 170 209 379 11.9 117
18 216 202 418 15.0 147
20 266 193 459 18.5 181
48 16 170 230 400 11.9 117
18 216 223 439 15.0 147
20 266 214 480 18.5 181
50 18 216 245 461 15.0 147
20 266 236 502 18.5 181
22 322 227 549 22.4 220
52 18 216 268 484 15.0 147
20 266 259 525 18.5 181
22 322 250 572 22.4 220
54 18 216 292 508 15.0 147
20 266 283 549 18.5 181
22 322 274 596 22.4 220
56 18 216 316 532 15.0 147
20 266 308 574 18.5 181
22 322 298 620 22.4 220
58 18 216 342 558 15.0 147
20 266 333 599 18.5 181
22 322 324 646 22.4 220
60 18 216 369 585 15.0 147
20 266 360 626 18.5 181
22 322 351 673 22.4 220

Tough Combination Rope: CBR6

Material: Polypropylene and wire
Construction: 6 strand fiber rope twisted around the wire core that consists of 24 wires of 6 strands
Direction of twist: Z twist
Color: Light gray

Dia WR Dia Weight (kg/200m) Breaking
Strength (t) 		Breaking
Strength (kN)
(mm) (mm) WR Fiber Total
16 8 42.6 23 65.6 2.97 29.1
9 53.8 21 74.8 3.75 36.8
10 66.4 19 85.4 4.64 45.5
18 8 42.6 31 73.6 2.97 29.1
9 53.8 29 82.8 3.75 36.8
10 66.4 27 93.4 4.64 45.5
20 9 53.8 38 91.8 3.75 36.8
10 66.4 36 102.4 4.64 45.5
12 95.6 30 125.6 6.68 65.5
22 9 53.8 48 101.8 3.75 36.8
10 66.4 46 112.4 4.64 45.5
12 95.6 40 135.6 6.68 65.5
24 10 66.4 57 123.4 4.64 45.5
12 95.6 51 146.6 6.68 65.5
14 130 45 175 9.09 89.1
26 12 95.6 63 158.6 6.68 65.5
14 130 57 187 9.09 89.1
16 170 50 220 11.9 117
28 12 95.6 76 171.6 6.68 65.5
14 130 70 200 9.09 89.1
16 170 63 233 11.9 117
30 14 130 84 214 9.09 89.1
16 170 76 246 11.9 117
18 216 68 284 15.0 147
32 16 170 91 261 11.9 117
18 216 83 299 15.0 147
20 266 74 340 18.5 181
34 16 170 107 277 11.9 117
18 216 99 315 15.0 147
20 266 90 356 18.5 181
22 322 80 402 22.4 220
36 18 216 115 331 15.0 147
20 266 106 372 18.5 181
22 322 96 418 22.4 220
24 382 85 467 26.7 262
38 18 216 133 349 15.0 147
20 266 124 390 18.5 181
22 322 114 436 22.4 220
24 382 103 485 26.7 262
40 18 216 151 367 15.0 147
20 266 142 408 18.5 181
22 322 132 454 22.4 220
24 382 121 503 26.7 262
42 20 266 161 427 18.5 181
22 322 151 473 22.4 220
24 382 141 523 26.7 262
44 22 322 172 494 22.4 220
24 382 161 543 26.7 262
