GD Rope

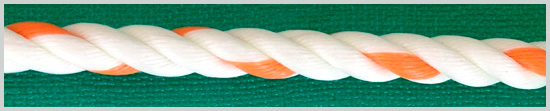

GD Rope (3strand)
Material: High-tenacity polyethylene and IZANAS (R)
Construction: 3 strand
Specific gravity: 0.97
Direction of twist: Z twist
- Color:
- Base: White Indicator
- Strand: Black, orange, blue, green or red
IZANAS (R) and special polyethylene strands are twisted together into a 3 strand rope.
IZANAS (R) has superior breaking strength and the polyethylene strands are abrasion resistant.
This special rope is resistant against break and abrasion, and used for large-meshed mid-water trawl.
| Dia | Breaking Strength (t) |
Breaking Strength (kN) |
Weight |
|---|---|---|---|
| (mm) | (kg/200m) | ||
| 9 | 2.00 | 19.6 | 9.40 |
| 11 | 2.96 | 29.0 | 15.1 |
| 12 | 3.52 | 34.5 | 17.8 |
| 13 | 4.24 | 41.6 | 21.6 |
| 14 | 4.96 | 48.6 | 25.8 |
| 16 | 5.76 | 56.5 | 30.5 |
| 18 | 6.24 | 61.2 | 36.0 |
| 20 | 8.00 | 78.5 | 48.0 |
| 22 | 8.72 | 85.5 | 58.0 |
