Super Tough Line Rope(PP)

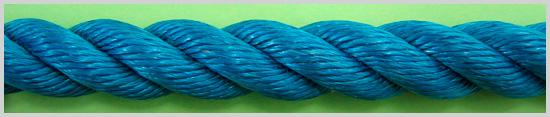

Super Tough Line-3 Rope(PP)
Material: High-tenacity polypropylene
Construction: 3 strand
Specific gravity: 0.90
Direction of twist: Z twist
Color: Light gray, white, black or blue
| Dia |
Breaking
Strength (t) |
Breaking
Strength (kN) |
Weight | Weight |
|---|---|---|---|---|
| (mm) | (kg/200m) | (kg/100m) | ||
| 6 | 0.66 | 6.47 | 3.78 | - |
| 8 | 1.13 | 11.1 | 6.72 | - |
| 10 | 1.73 | 17.0 | 10.5 | - |
| 12 | 2.40 | 23.5 | 15.0 | - |
| 14 | 3.31 | 32.5 | 20.6 | - |
| 16 | 4.14 | 40.6 | 26.1 | - |
| 18 | 5.24 | 51.4 | 33.6 | - |
| 20 | 6.22 | 61.0 | 41.1 | - |
| 22 | 7.73 | 75.8 | 50.7 | 25.4 |
| 24 | 8.98 | 88.1 | 59.7 | 29.9 |
| 26 | 10.4 | 102 | 69.0 | 34.5 |
| 28 | 11.7 | 115 | 79.6 | 39.8 |
| 30 | 13.7 | 134 | 92.2 | 46.1 |
| 32 | 15.2 | 149 | 105 | 52.5 |
| 34 | 17.2 | 169 | 119 | 59.5 |
| 36 | 19.0 | 186 | 132 | 66.0 |
| 38 | 20.9 | 205 | 146 | 73.0 |
| 40 | 23.0 | 226 | 165 | 82.5 |
| 42 | 25.6 | 251 | 181 | 90.5 |
| 45 | 28.6 | 280 | 207 | 104 |
| 50 | 35.2 | 345 | 255 | 128 |
| 55 | 41.4 | 406 | 308 | 154 |
| 60 | 49.0 | 481 | 368 | 184 |
| 65 | 56.6 | 555 | 432 | 216 |
| 70 | 64.9 | 636 | 501 | 251 |
| 75 | 73.8 | 724 | 574 | 287 |
| 80 | 83.5 | 819 | 654 | 327 |
| 85 | 93.8 | 920 | 738 | 369 |
| 90 | 104 | 1,020 | 827 | 414 |
| 95 | 115 | 1,128 | 923 | 462 |
| 100 | 126 | 1,236 | 1022 | 511 |

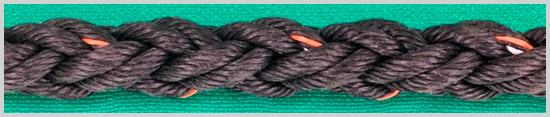

Super Tough Line-8 Rope(PP)
Material : High-tenacity Polypropylene
Construction : 8 (2x4) Strand
Specific Gravity : 0.90
Color : Light Gray, White, Black or blue
| Dia | Breaking Strength (t) |
Breaking Strength (kN) |
Weight | Weight |
|---|---|---|---|---|
| (mm) | (kg/200m) | (kg/100m) | ||
| 6 | 0.66 | 6.47 | 4.04 | - |
| 8 | 1.13 | 11.1 | 6.37 | - |
| 10 | 1.73 | 17.0 | 10.3 | - |
| 12 | 2.40 | 23.5 | 15.5 | - |
| 14 | 3.31 | 32.5 | 19.4 | - |
| 16 | 4.14 | 40.6 | 26.5 | - |
| 18 | 5.24 | 51.4 | 33.4 | - |
| 20 | 6.22 | 61.0 | 41.3 | - |
| 22 | 7.73 | 75.8 | 49.9 | - |
| 24 | 8.98 | 88.1 | 59.4 | - |
| 26 | 10.4 | 102 | 69.7 | 34.9 |
| 28 | 11.7 | 115 | 81.0 | 40.5 |
| 30 | 13.7 | 134 | 92.9 | 46.5 |
| 32 | 15.2 | 149 | 106 | 53.0 |
| 34 | 17.2 | 169 | 119 | 59.5 |
| 36 | 19.0 | 186 | 133 | 66.5 |
| 38 | 20.9 | 205 | 148 | 74.0 |
| 40 | 23.0 | 226 | 165 | 82.5 |
| 42 | 25.6 | 251 | 183 | 91.5 |
| 45 | 28.6 | 280 | 209 | 105 |
| 50 | 35.2 | 345 | 257 | 129 |
| 55 | 41.4 | 406 | 312 | 156 |
| 60 | 49.0 | 481 | 372 | 186 |
| 65 | 56.6 | 555 | 436 | 218 |
| 70 | 64.9 | 636 | 506 | 253 |
| 75 | 73.8 | 724 | 581 | 291 |
| 80 | 83.5 | 819 | 660 | 330 |
| 85 | 93.8 | 920 | 746 | 373 |
| 90 | 104 | 1,020 | 836 | 418 |
| 95 | 115 | 1,128 | 931 | 466 |
| 100 | 126 | 1,236 | 1032 | 516 |
Super Tough Line-12 Rope(PP)
Material : High-tenacity Polypropylene
Construction :12 (2x6) Strand
Specific Gravity : 0.90
Color : Light Gray, White, Black or blue
| Dia | Breaking Strength (t) |
Breaking Strength (kN) |
Weight | Weight |
|---|---|---|---|---|
| (mm) | (kg/200m) | (kg/100m) | ||
| 6 | 0.74 | 7.29 | 4.12 | - |
| 8 | 1.26 | 12.4 | 6.94 | - |
| 10 | 1.92 | 18.8 | 10.8 | - |
| 12 | 2.68 | 26.3 | 15.5 | - |
| 14 | 3.57 | 35.0 | 21.2 | - |
| 16 | 4.57 | 44.8 | 27.6 | - |
| 18 | 5.68 | 55.7 | 34.8 | - |
| 20 | 6.91 | 67.8 | 43.0 | - |
| 22 | 8.24 | 80.8 | 52.0 | - |
| 24 | 9.69 | 95.0 | 61.8 | - |
| 26 | 11.3 | 111 | 72.4 | 36.2 |
| 28 | 12.8 | 126 | 83.8 | 41.9 |
| 30 | 14.6 | 143 | 96.2 | 48.1 |
| 32 | 16.4 | 161 | 109 | 54.5 |
| 34 | 18.6 | 182 | 123 | 61.5 |
| 36 | 20.5 | 201 | 138 | 69.0 |
| 38 | 22.6 | 222 | 154 | 77.0 |
| 40 | 25.1 | 246 | 170 | 85.0 |
| 42 | 27.3 | 268 | - | 94.0 |
| 45 | 30.9 | 303 | - | 108 |
| 50 | 38.2 | 375 | - | 133 |
The maximum length of the rope with the diameter of 42mm, 45mm and 50mm is 100m.
