Super TokuLine Rope (PE)

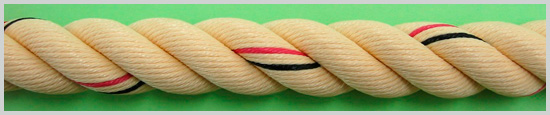

Super TokuLine-3 Rope (PE)
Material : High-tenacity Polyethylene
Construction : 3 Strand
Specific Gravity : 0.95
Direction of Twist : Z - Lay
Color : Ivory / Black
* Easy to Splice
| Dia | Breaking Strength (t) |
BreakingStrength (kN) | Weight | Weight |
|---|---|---|---|---|
| (mm) | (kg/200m) | (kg/100m) | ||
| 6 | 0.63 | 6.18 | 3.71 | - |
| 8 | 1.08 | 10.6 | 6.60 | - |
| 10 | 1.63 | 16.0 | 10.3 | - |
| 12 | 2.25 | 22.1 | 14.8 | - |
| 14 | 3.00 | 29.4 | 20.1 | - |
| 16 | 3.80 | 37.3 | 26.3 | - |
| 18 | 4.80 | 47.1 | 33.3 | - |
| 20 | 5.80 | 56.9 | 41.1 | - |
| 22 | 7.00 | 68.6 | 49.8 | - |
| 24 | 8.20 | 80.4 | 59.2 | 29.6 |
| 26 | 9.40 | 92.2 | 69.5 | 34.8 |
| 28 | 10.6 | 104 | 80.6 | 40.3 |
| 30 | 12.4 | 122 | 92.5 | 46.3 |
| 32 | 13.8 | 135 | 105 | 52.5 |
| 34 | 15.5 | 152 | 119 | 59.5 |
| 36 | 17.2 | 169 | 133 | 66.5 |
| 38 | 19.0 | 186 | 148 | 74.0 |
| 40 | 21.0 | 206 | 164 | 82.0 |
| 42 | 23.0 | 226 | 181 | 90.5 |
| 45 | 26.0 | 255 | 208 | 104.0 |
| 50 | 32.0 | 314 | 257 | 128.5 |
| 55 | 38.0 | 373 | 310 | 155.0 |
| 60 | 44.4 | 435 | 370 | 185.0 |
| 65 | 51.3 | 503 | 434 | 217.0 |
| 70 | 58.8 | 577 | 501 | 250.5 |
| 75 | 67.0 | 657 | 577 | 288.5 |
| 80 | 75.6 | 741 | 657 | 328.5 |
| 85 | 85.0 | 834 | 744 | 372.0 |
| 90 | 94.0 | 922 | 834 | 417.0 |
| 95 | 104 | 1,020 | 930 | 465.0 |
| 100 | 114 | 1,118 | 1030 | 515.0 |

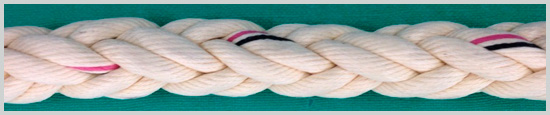

Super TokuLine-8 Rope (PE)
Material : High-tenacity Polyethylene
Construction : 8(2x4) Strand
Specific Gravity : 0.95
Color : Ivory / Black
* Easy to Splice
| Dia | Breaking Strength (t) |
Breaking Strength (kN) |
Weight | Weight |
|---|---|---|---|---|
| (mm) | (kg/200m) | (kg/100m) | ||
| 6 | 0.63 | 6.18 | 4.10 | - |
| 8 | 1.08 | 10.6 | 6.44 | - |
| 10 | 1.63 | 16.0 | 10.0 | - |
| 12 | 2.25 | 22.1 | 14.3 | - |
| 14 | 3.00 | 29.4 | 19.6 | - |
| 16 | 3.80 | 37.3 | 25.0 | - |
| 18 | 4.80 | 47.1 | 32.1 | - |
| 20 | 5.80 | 56.9 | 39.2 | - |
| 22 | 7.00 | 68.6 | 47.7 | - |
| 24 | 8.20 | 80.4 | 56.7 | 28.4 |
| 26 | 9.40 | 92.2 | 65.5 | 32.8 |
| 28 | 10.6 | 104 | 75.6 | 37.8 |
| 30 | 12.4 | 122 | 90.4 | 45.2 |
| 32 | 13.8 | 135 | 101 | 50.5 |
| 34 | 15.5 | 152 | 110 | 55.0 |
| 36 | 17.2 | 169 | 125 | 62.5 |
| 38 | 19.0 | 186 | 144 | 72.0 |
| 40 | 21.0 | 206 | 158 | 79.0 |
| 42 | 23.0 | 226 | 173 | 86.5 |
| 45 | 26.0 | 255 | 197 | 98.5 |
| 50 | 32.0 | 314 | 245 | 122.5 |
| 55 | 38.0 | 373 | 300 | 150.0 |
| 60 | 44.4 | 435 | 353 | 176.5 |
| 65 | 51.3 | 503 | 414 | 207.0 |
| 70 | 58.8 | 577 | 485 | 242.5 |
| 75 | 67.0 | 657 | 551 | 275.5 |
| 80 | 75.6 | 741 | 629 | 314.5 |
| 85 | 85.0 | 834 | 712 | 356.0 |
| 90 | 94.0 | 922 | 800 | 400.0 |
| 95 | 104 | 1,020 | 890 | 445.0 |
| 100 | 114 | 1,118 | 980 | 490.0 |
