High Blend Rope

Material: Polypropylene & Polyester

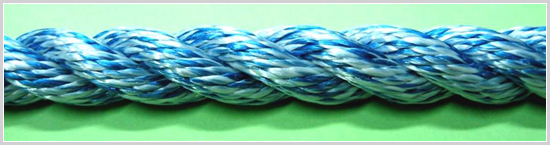

Construction: 3 Strand
Direction of Twist: Z - Lay
Specific Gravity: 1.09

Dia	Breaking Strength	Breaking Strength	Weight
(mm)	(t)	(kN)	(kg/200m)
3	0.2	2.0	1.1
4	0.3	3.3	1.96
5	0.5	5.1	3.07
6	0.7	7.2	4.42
7	1.0	9.5	6.01
8	1.2	12.2	7.85
9	1.5	15.1	9.94
10	1.9	18.3	12.3
12	2.6	25.8	17.7
14	3.5	34.2	24.0
16	4.5	43.8	31.4
18	5.6	54.5	39.7
20	6.8	66.2	49.1
22	8.1	79.0	59.4
24	9.5	92.8	70.7
26	11.0	108	82.9
28	12.6	124	96.2
30	14.3	140	110
32	16.1	158	126
34	18.0	176	142
35	19.0	186	150
36	20.6	202	159
38	23.3	228	177
40	25.1	246	196
42	27.5	270	216
45	31.2	306	248
50	38.3	375	307
55	46.7	458	371
60	53.2	522	441
65	61.9	607	518
70	72.0	706	601
75	83.4	818	690
80	93.5	917	785
85	106	1,044	886
90	117	1,148	993

Material: Polypropylene & Polyester

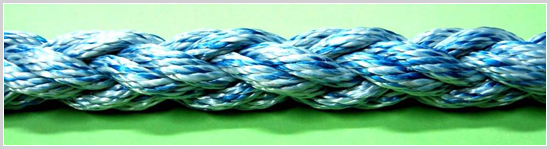

Construction: 8 (2×4) Strand
Specific Gravity: 1.09

Dia	Breaking Strength	Breaking Strength	Weight
(mm)	(t)	(kN)	(kg/200m)
6	0.7	7.2	4.2
7	1.0	9.5	5.7
8	1.2	12.2	7.4
9	1.5	15.1	9.4
10	1.9	18.3	11.6
12	2.6	25.8	16.7
14	3.5	34.2	22.7
16	4.5	43.8	29.6
18	5.6	54.5	37.4
20	6.8	66.2	46.2
22	8.1	79.0	55.9
24	9.5	92.8	66.6
26	11.0	108	78.1
28	12.6	124	90.6
30	14.3	140	104
32	16.1	158	119
34	18.0	176	134
35	19.0	186	142
36	20.6	202	150
38	23.3	228	167
40	25.1	246	185
42	27.5	270	205
45	31.2	306	234
50	38.3	375	288
55	46.7	458	349
60	53.2	522	415
65	61.9	607	487
70	72.0	706	566
75	83.4	818	649
80	93.5	917	739
85	106	1,044	834
90	117	1,148	935
95	130	1,272	1,042
100	144	1,410	1,155
