Polyester Rope

Material: Polyester

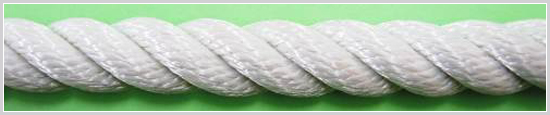

Construction: 3 Strand
Direction of Twist: Z - Lay
Specific Gravity: 1.38

Dia	Breaking Strength	Breaking Strength	Weight
(mm)	(t)	(kN)	(kg/200m)
3	0.15	1.47	1.37
4	0.26	2.55	2.47
5	0.40	3.92	3.86
6	0.56	5.49	5.55
7	0.75	7.36	7.56
8	0.96	9.41	9.87
9	1.19	11.7	12.5
10	1.59	15.6	15.4
11	1.91	18.7	18.8
12	2.24	22.0	22.2
14	2.98	29.2	30.2
16	3.28	37.5	39.5
18	4.76	46.7	50.0
20	5.79	56.8	61.7
22	6.91	67.8	74.7
24	8.12	79.6	88.9
26	9.42	92.4	104
28	10.8	106	121
30	12.3	121	139
32	13.9	136	159
34	15.5	152	179
35	16.4	161	188
36	17.3	170	201
38	19.1	187	223
40	21.0	206	247
42	23.0	226	272
45	26.1	256	313
50	31.8	312	386
55	38.0	373	467
60	44.6	437	555
65	51.8	508	652
70	59.5	584	756
75	67.6	663	868
80	76.2	747	988
85	85.3	837	1,115
90	94.9	931	1,251
95	105	1,030	1,393
100	115	1,128	1,544

Material: Polyester

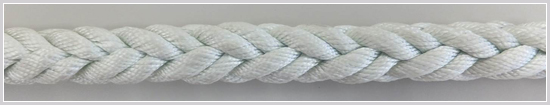

Construction: 8 (2×4) Strand
Specific Gravity: 1.38

Dia	Breaking Strength	Breaking Strength	Weight
(mm)	(t)	(kN)	(kg/200m)
6	0.56	5.49	5.53
7	0.75	7.36	7.91
8	0.96	9.41	10.3
9	1.19	11.7	12.7
10	1.59	15.6	16.6
11	1.91	18.7	20.1
12	2.24	22.0	23.9
14	2.98	29.2	31.2
16	3.28	37.5	40.7
18	4.76	46.7	52.7
20	5.79	56.8	62.2
22	6.91	67.8	77.5
24	8.12	79.6	92.0
26	9.42	92.4	109
28	10.8	106	124
30	12.3	121	141
32	13.9	136	165
34	15.5	152	188
35	16.4	161	194
36	17.3	170	205
38	19.1	187	234
40	21.0	206	257
42	23.0	226	280
45	26.1	256	325
50	31.8	312	394
55	38.0	373	486
60	44.6	437	575
65	51.8	508	675
70	59.5	584	784
75	67.6	663	893
80	76.2	747	1,023
85	85.3	837	1,150
90	94.9	931	1,294
95	105	1,030	1,434
100	115	1,128	1,588
