Nylon Rope

Material : Nylon

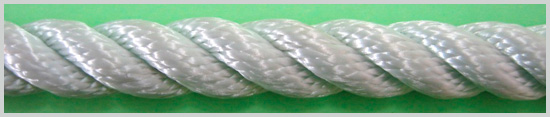

Construction : 3 Strand
Direction of Twist : Z - Lay
Specific Gravity : 1.14
Color : White

Dia	Breaking Strength (t)	Breaking Strength (kN)	Weight	Weight
(mm)	Breaking Strength (t)	Breaking Strength (kN)	(kg/200m)	(kg/100m)
6	0.81	7.94	4.43	-
8	1.38	13.5	7.86	-
10	2.09	20.5	12.3	-
12	2.93	28.7	17.7	-
14	3.90	38.2	24.0	-
16	4.98	48.8	31.3	-
18	6.20	60.8	39.7	-
20	7.52	73.7	48.9	-
22	9.00	88.3	59.2	29.6
24	10.5	103	70.4	35.2
26	12.3	121	82.6	41.3
28	14.0	137	95.8	47.9
30	16.0	157	109	54.5
32	17.7	174	125	62.5
34	20.1	197	141	70.5
36	22.4	220	158	79.0
38	24.7	242	176	88.0
40	27.2	267	195	97.5
42	29.7	291	215	108
45	33.8	331	246	123
50	41.0	402	304	152
55	49.0	481	368	184
60	57.5	564	438	219
65	66.5	652	513	257
70	76.5	750	596	298
75	87.0	853	683	342
80	98.0	961	777	389
85	110	1,079	874	437
90	122	1,196	980	490
95	135	1,324	1092	546
100	148	1,451	1210	605

Material : Nylon

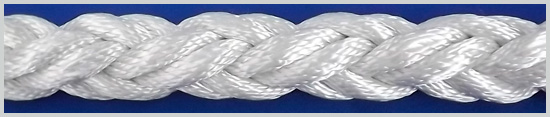

Construction : 8(2x4) Strand
Specific Gravity : 1.14
Color : White

Dia	Breaking Strength (t)	Breaking Strength (kN)	Weight	Weight
(mm)	Breaking Strength (t)	Breaking Strength (kN)	(kg/200m)	(kg/100m)
6	0.81	7.94	4.5	-
8	1.38	13.5	7.8	-
10	2.09	20.5	11.7	-
12	2.93	28.7	18.1	-
14	3.90	38.2	24.6	-
16	4.98	48.8	31.1	-
18	6.20	60.8	38.9	-
20	7.52	73.7	48.6	-
22	9.00	88.3	60.3	-
24	10.5	103	68.0	34.0
26	12.3	121	81.0	40.5
28	14.0	137	97.0	48.5
30	16.0	157	111	55.5
32	17.7	174	125	62.5
34	20.1	197	139	69.5
36	22.4	220	152	76.0
38	24.7	242	171	85.5
40	27.2	267	193	96.5
42	29.7	291	212	106
45	33.8	331	240	120
50	41.0	402	306	153
55	49.0	481	371	186
60	57.5	564	448	224
65	66.5	652	522	261
70	76.5	750	604	302
75	87.0	853	693	347
80	98.0	961	790	395
85	110	1,079	872	436
90	122	1,196	981	491
95	135	1,324	1100	550
100	148	1,451	1210	605

Material : Nylon

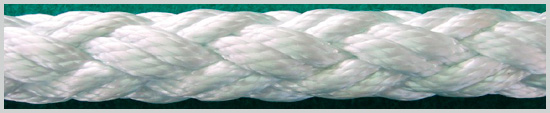

Construction : 12 (2x6) Strand
Specific Gravity : 1.14
Color : White

Dia	Breaking Strength (t)	Breaking Strength (kN)	Weight	Weight
(mm)	Breaking Strength (t)	Breaking Strength (kN)	(kg/200m)	(kg/100m)
6	0.95	9.29	4.76	-
8	1.61	15.8	8.38	-
10	2.48	24.3	13.2	-
12	3.49	34.2	18.8	-
14	4.69	46.0	24.8	-
16	6.05	59.3	32.6	-
18	7.58	74.3	41.6	-
20	9.25	90.7	51.2	-
22	11.10	109.0	61.6	-
24	13.0	127	73.2	-
26	15.2	149	85.8	42.9
28	17.2	169	99.2	49.6
30	19.7	193	114	57.0
32	21.8	214	129	64.5
34	24.7	242	145	72.5
36	27.6	271	163	81.5
38	30.0	294	181	90.5
40	33.4	328	200	100
42	36.5	358	-	111
45	41.5	407	-	127
50	50.4	494	-	157

The maximum length of the rope with the diameter of 42mm, 45mm and 50mm is 100m.
