Tough Line Rope(PP)

Material : Polypropylene

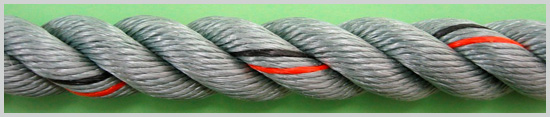

Construction : 3 Strand
Specific Gravity : 0.90
Direction of Twist : Z - Lay
Color : Light Gray, White, Black, Orange

Dia	Breaking Strength (t)	Breaking Strength (kN)	Weight	Weight
(mm)	Breaking Strength (t)	Breaking Strength (kN)	(kg/200m)	(kg/100m)
6	0.55	5.39	3.60	-
8	0.94	9.22	6.40	-
10	1.44	14.1	10.0	-
12	2.00	19.6	14.3	-
14	2.76	27.1	19.6	-
16	3.45	33.8	24.9	-
18	4.37	42.9	32.0	-
20	5.18	50.8	39.1	-
22	6.44	63.2	48.3	24.2
24	7.48	73.4	56.9	28.5
26	8.6	84.6	65.7	32.9
28	9.8	95.9	75.8	37.9
30	11.4	112	87.8	43.9
32	12.7	125	99.6	49.8
34	14.3	140	113	56.5
36	15.8	155	126	63.0
38	17.4	171	139	69.5
40	19.2	188	157	78.5
42	21.3	209	172	86.0
45	23.8	233	197	98.5
50	29.3	287	243	121.5
55	34.5	338	293	146.5
60	40.8	400	350	175.0
65	47.2	463	411	205.5
70	54.1	531	477	238.5
75	61.5	603	547	273.5
80	69.6	683	623	311.5
85	78.2	767	703	351.5
90	86	846	788	394.0
95	96	937	879	439.5
100	105	1,030	973	486.5

Material : Polypropylene

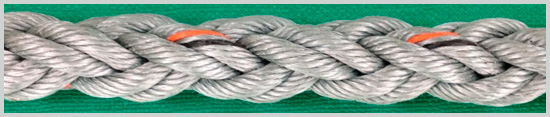

Construction : 8 (2x4) Strand
Specific Gravity : 0.90
Color : Light Gray, White, Black, Orenge

Dia	Breaking Strength (t)	Breaking Strength (kN)	Weight	Weight
(mm)	Breaking Strength (t)	Breaking Strength (kN)	(kg/200m)	(kg/100m)
6	0.55	5.39	3.85	-
8	0.94	9.22	6.07	-
10	1.44	14.1	9.83	-
12	2.00	19.6	14.8	-
14	2.76	27.1	18.5	-
16	3.45	33.8	25.2	-
18	4.37	42.9	31.8	-
20	5.18	50.8	39.3	-
22	6.44	63.2	47.5	23.8
24	7.48	73.4	56.6	28.3
26	8.6	84.6	66.4	33.2
28	9.8	95.9	77.1	38.6
30	11.4	112	88.5	44.3
32	12.7	125	101	50.5
34	14.3	140	113	56.5
36	15.8	155	127	63.5
38	17.4	171	141	70.5
40	19.2	188	157	78.5
42	21.3	209	174	87.0
45	23.8	233	199	99.5
50	29.3	287	245	122.5
55	34.5	338	297	148.5
60	40.8	400	354	177.0
65	47.2	463	415	207.5
70	54.1	531	482	241.0
75	61.5	603	553	276.5
80	69.6	683	629	314.5
85	78.2	767	710	355.0
90	86	846	796	398.0
95	96	937	887	443.5
100	105	1,030	983	491.5
