UltraLineD Rope

Material: Dyneema (R)

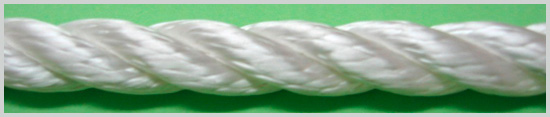

Construction : 3 Strand
Specific Gravity : 0.97
Direction of Twist : Z - Lay
Color : White

Dia	Breaking Strength (t)	Breaking Strength (kN)	Weight	Weight
(mm)	Breaking Strength (t)	Breaking Strength (kN)	(kg/200m)	(kg/100m)
6	1.8	17.7	3.82	-
8	3.0	29.4	6.80	-
10	4.4	43.1	10.6	-
12	6.0	58.8	15.3	-
14	7.9	77.5	20.8	-
16	10.0	98.1	27.1	-
18	12.3	121	34.4	-
20	14.8	145	42.4	21.20
22	17.4	171	51.3	25.65
24	20.3	199	61.1	30.55
26	23.4	229	71.7	35.85
28	26.6	261	83.1	41.55
30	30.0	294	95.4	47.70
32	33.6	330	109	54.50
34	37.3	366	123	61.50
36	41.3	405	138	69.00
38	45.4	445	153	76.50
40	49.6	486	173	86.50
42	54.0	530	187	93.50

Material: Dyneema (R)

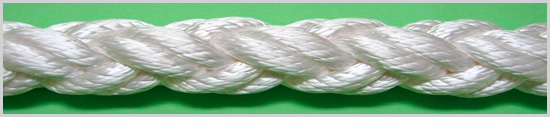

Construction : 8(2x4) Strand
Specific Gravity : 0.97
Color : White

Dia	Breaking Strength (t)	Breaking Strength (kN)	Weight	Weight
(mm)	Breaking Strength (t)	Breaking Strength (kN)	(kg/200m)	(kg/100m)
8	3.13	30.7	7.20	-
10	4.64	45.5	11.1	-
12	6.37	62.5	15.9	-
14	8.35	81.9	21.8	-
16	10.5	103	28.0	-
18	13.1	128	35.7	-
20	15.6	153	43.8	21.9
22	18.6	182	53.0	26.5
24	21.5	211	63.0	31.5
26	24.9	244	74.0	37.0
28	28.2	277	86.0	43.0
30	31.9	313	99.0	49.5
32	35.7	350	112	56.0
34	39.7	389	127	63.5
36	43.8	430	142	71.0
38	48.2	473	158	79.0
40	52.7	517	175	87.5
42	57.4	563	193	96.5
45	65.0	637	221	110.5
50	78.2	767	272	136.0
55	92.4	906	329	164.5
60	108.0	1,059	392	196.0

Material: Dyneema (R)

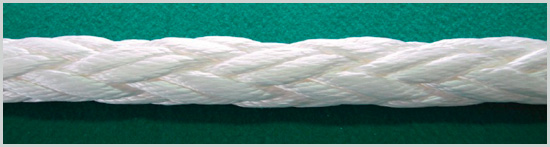

Construction : 12(2x6) Strand
Specific Gravity : 0.97
Color : White

Dia	Breaking Strength (t)	Breaking Strength (kN)	Weight	Weight
(mm)	Breaking Strength (t)	Breaking Strength (kN)	(kg/200m)	(kg/100m)
6	2.25	22.1	4.06	-
8	3.83	37.6	7.22	-
10	5.78	56.7	11.3	-
12	8.10	79.4	16.3	-
14	10.8	106	22.2	-
16	13.8	135	29.0	-
18	17.1	168	36.8	-
20	20.8	204	45.4	22.7
22	24.8	243	55.0	27.5
24	29.2	286	64.4	32.2
26	33.8	331	76.8	38.4
28	38.7	380	89.2	44.6
30	43.9	431	102	51.0
32	49.6	486	117	58.5
34	55.4	543	132	66.0
36	61.6	604	148	74.0
38	68.0	667	165	82.5
40	74.7	733	182	91.0
42	81.8	802	-	100.0
46	96.8	949	-	121.0
48	105.0	1,027	-	131.0
50	113.0	1,107	-	142.0

*Dyneema(R) is a registered trademark of Toyobo in Japan.
