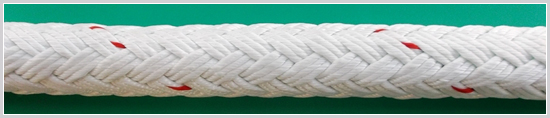

Double Braided Rope

Material: Nylon

Dia	Length	Breaking Strength	Breaking Strength	Weight
(mm)	(m)	(t)	(kN)	(kg/coil)
12	100	3.54	34.7	9.5
14	100	4.66	45.7	12.8
16	100	5.78	56.7	16.0
18	100	7.42	72.8	20.8
20	100	9.03	88.6	25.7
22	100	11.2	110	32.1
24	100	12.3	121	35.4
26	100	14.3	140	41.9
28	100	17.6	173	51.5
32	100	21.8	214	64.5
36	100	28.1	276	84.5
38	100	30.2	296	91.0
42	70	37.3	366	79.5
46	50	44.2	433	68.3
48	50	47.8	469	74.0

manufactured by TOKYO ROPE MFG. Co.,Ltd.

Material: Polypropylene and Polyester

Dia	Length	Breaking Strength	Breaking Strength	Weight
(mm)	(m)	(t)	(kN)	(kg/coil)
12	100	3.35	32.9	10.6
14	100	4.02	39.4	12.8
16	100	5.35	52.5	17.0
18	100	6.69	65.6	21.4
20	100	7.97	78.2	25.5
22	100	10.0	98.1	31.9
24	100	12.0	118	38.3
26	100	13.9	136	44.7
28	100	15.9	156	51.0
30	100	17.9	176	57.5
32	100	19.9	195	64.0
34	100	23.9	234	77.0
36	100	25.9	254	84.0
38	100	27.9	274	91.0
40	100	31.0	304	103.0
42	100	36.7	360	119.0
45	100	41.2	404	134.0
48	100	45.8	449	152.0
50	100	50.4	494	164.0
55	100	59.6	584	194.0
60	100	73.3	719	240.0
65	100	84.5	829	276.0

manufactured by TOKYO ROPE MFG. Co.,Ltd.
