UBE Set Net Float

Material : Polyethylene
Configuration: Round float with two square-holed ears aligned on the half sphere

Item No.	Diameter	Depth	Weight	Bouyancy	Bouyancy	Dia.of Hole	Packing	Color
Item No.	(mm)	(m)	(g)	(N)	(kgf)	(mm)	Packing	Color
CTP-301	295	50	1,690	123.9	12.64	36 x 29	5	Yellow
CTP-361	357	50	3,270	208.8	21.31	36 x 29	4
CTP-401	405	50	5,400	301.5	30.76	48 x 33	4

(Tolerance±3%)

Material : Polyethylene
Configuration: Round float with a through hole

Item No.	Diameter	Depth	Weight	Bouyancy	Bouyancy	Dia.of Hole	Packing	Color
Item No.	(mm)	(m)	(g)	(N)	(kgf)	(mm)	Packing	Color
CTP-351B	345 x 322	50	3,000	186.4	19.03	39	4	Yellow

(Tolerance±3%)

Material : Polyethylene
Configuration: Oval float with two square-holed ears aligned on the half sphere

Item No.	Diameter	Depth	Weight	Bouyancy	Bouyancy	Dia.of Hole	Packing	Color
Item No.	(mm)	(m)	(g)	(N)	(kgf)	(mm)	Packing	Color
UTP-12	306 x 445	50	3,600	198.7	20.27	33 x 27	4	Yellow
UTP-13	365 x 510	50	5,475	302.9	30.91	34 x 28	2	Yellow

(Tolerance±3%)

Material : Polyethylene

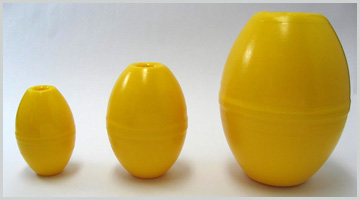

Configuration: Oval float with a through hole

Item No.	Diameter	Depth	Weight	Bouyancy	Bouyancy	Dia.of Hole	Packing	Color
Item No.	(mm)	(m)	(g)	(N)	(kgf)	(mm)	Packing	Color
UP-3.5	82 x 123	150	170	2.3	0.23	16	100	Yellow
UP-4	111 x 155	150	365	6.3	0.65	24	50
UP-5	130 x 178	150	500	10.1	1.03	24	50
UP-5.5	150 x 200	150	735	15.8	1.61	30	30
UP-6	172 x 228	100	1,060	25.1	2.56	30	18
UP-7	181 x 237	100	1,180	29.8	3.04	30	12
UP-8	227 x 310	100	2,330	67.8	6.92	40	6
UP-10	258 x 351	50	2,330	118.3	12.07	39	5
UP-12A	303 x 459	50	3,900	207.5	21.18	32	5
UP-12B	303 x 451	50	4,170	196.5	20.05	50	5

(Tolerance±3%)

Material : Polypropylene
Configuration: Oval float with a through hole

Item No.	Diameter	Depth	Weight	Bouyancy	Bouyancy	Dia.of Hole	Packing	Color
Item No.	(mm)	(m)	(g)	(N)	(kgf)	(mm)	Packing	Color
UP-24B	344 x 405	50	3,530	216.4	22.08	50	4	Yellow

(Tolerance±3%)

*UP-24B is available in both polypropylene and ABS. Please choose the material suitable for your application.
