UBE Large Float

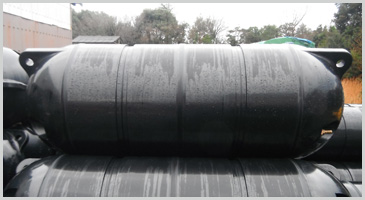

UBE Large Float for large set net, aquaculture and other floating structures

CT-Series

Material : ABS resin
Configuration: Barrel-shaped float with two ears each aligned on the both ends. The body has grooves to wind ropes around it.
Feature: Its main body and ears are thicker to make it durable.

Item No. Diameter Length Depth Weight Bouyancy Bouyancy Dia.of Hole Color
(mm) (mm) (m) (kg) (N) (kgf) (mm)
CT-36K-2 360 610 100 8.2 395 40.3 28 Red
CT-36K-3 360 725 100 10.0 448 49.8 28
CT-36K-4 360 860 100 12.4 616 62.4 28
CT-36K-5 360 975 100 14.2 708 72.3 28
CT-36K-6 360 1,090 100 16.1 802 81.8 28
CT-36K-7 360 1,200 100 17.9 895 91.3 28
CT-36K-8 360 1,335 100 19.9 1074 109.6 28
CT-36K-9 360 1,465 100 21.9 1157 118.1 28
CT-36K-10 360 1,580 100 23.9 1288 131.4 28
CT-45K-2 450 800 100 18.5 823 84.0 36 Red
CT-45K-3 450 960 100 20.5 1058 108.0 36
CT-45K-4 450 1,150 100 27.0 1284 131.0 36
CT-45K-5 450 1,320 100 30.0 1519 155.0 36
CT-45K-6 450 1,500 100 35.5 1744 178.0 36
CT-45K-7 450 1,660 100 37.5 1970 201.0 36
CT-45K-8 450 1,860 100 44.5 2205 225.0 36
CT-45K-2B 450 800 100 18.5 823 84.0 36 Black
CT-45K-3B 450 960 100 20.5 1058 108.0 36
CT-45K-4B 450 1,150 100 27.0 1284 131.0 36
CT-45K-5B 450 1,320 100 30.0 1519 155.0 36
CT-45K-6B 450 1,500 100 35.5 1744 178.0 36
CT-45K-7B 450 1,660 100 37.5 1970 201.0 36
CT-45K-8B 450 1,860 100 44.5 2205 225.0 36
CT-60K-2B 600 800 80 19.0 1470 150.0 40 Black
CT-60K-4B 600 1,000 80 25.0 1960 200.0 40
CT-60K-6B 600 1,200 80 32.0 2450 250.0 40
CT-60K-8B 600 1,400 80 39.0 2940 300.0 40
CT-60K-10B 600 1,600 80 45.0 3430 350.0 40
CT-60K-12B 600 1,800 80 52.0 3920 400.0 40
CT-100K-2B 1,000 1,500 20 84.0 7840 800.0 80 Black
CT-100K-4B 1,000 2,000 20 120.0 11760 1200.0 80
CT-100K-6B 1,000 2,500 20 156.0 15680 1600.0 80

(Tolerance±3%)

UJK-250-S

Material : ABS resin
Configuration: Barrel-shaped float with two ears each aligned on the both ends. The body has grooves to wind ropes around it.
Feature: Good to apply to an aquaculture raft. It has an anti-slip processed body and has a longer life than a foam float.

Item No. Diameter Length Depth Weight Bouyancy Bouyancy Dia.of Hole Color
(mm) (mm) (m) (kg) (N) (kgf) (mm)
UJK-250-S 600 1,080 7 20.0 2450 250.0 25 Gray

(Tolerance±3%)

UJK-360-S

Material : ABS resin
Configuration: Barrel-shaped float with one ear each aligned on the both ends. The body has grooves to wind ropes around it.
Feature: Good to apply to a floating pier. It has an anti-slip processed body and has a longer life than a foam float.

Item No. Diameter Length Depth Weight Bouyancy Bouyancy Dia.of Hole Color
(mm) (mm) (m) (kg) (N) (kgf) (mm)
UJK-360-S 690 1,274 7 27.0 3577 365.0 40 x 45 Gray

(Tolerance±3%)

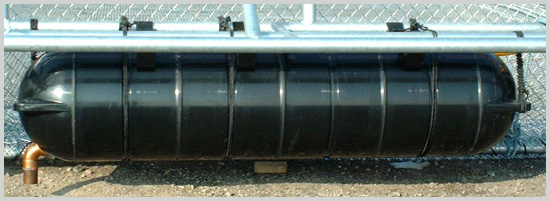

FF-Series

Material : ABS resin
Configuration: Barrel-shaped float with two ears each aligned on the both ends. The body has grooves to wind ropes around it.
Feature: It is submersible and has a hole each on the both ends of the body to feed or discharge air and water, with an optional nozzle sold separately.

Item No. Diameter Length Depth Weight Bouyancy Bouyancy Dia.of Hole Color
(mm) (mm) (m) (kg) (N) (kgf) (mm)
FF-600-2 600 1,100 22.0 2254 230.0 40 Black
FF-600-4 600 1,685 33.3 3626 370.0 40
FF-600-6 600 2,230 45.0 4998 510.0 40
FF-600-8 600 2,775 56.8 6370 650.0 40

(Tolerance±3%)
