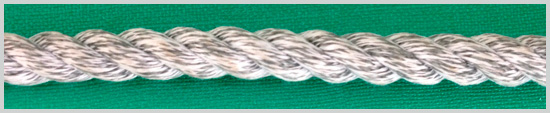

Polytex Rope
Polytex Rope
Material : Polyester / Polyethylene
Construction : 3 Strand
Specific Gravity : 1.17
Direction of Twist : Z - Lay
Color : White / Light Gray
* Easy to Splice
The rope shrinks when it is wet. Knotted or spliced parts shrink and are tightened in the water.
| Dia | Breaking Strength (t) |
Breaking Strength (kN) |
Weight | Weight | Twist Hardness |
|---|---|---|---|---|---|
| (mm) | (kg/200m) | (kg/100m) | |||
| 8 | 0.7 | 6.86 | 6.6 | - | Soft |
| 10 | 1.0 | 9.81 | 10.4 | - | Soft |
| 12 | 1.4 | 13.7 | 14.7 | - | Soft |
| 14 | 1.8 | 17.7 | 20.1 | - | Soft |
| 16 | 2.4 | 23.5 | 26.2 | - | Soft |
| 18 | 2.9 | 28.4 | 33.0 | - | Soft |
| 20 | 3.6 | 35.3 | 40.9 | - | Soft |
| 22 | 4.3 | 42.2 | 49.5 | - | Soft |
| 24 | 5.0 | 49.0 | 58.9 | - | Soft |
| 26 | 5.8 | 56.9 | 70.0 | - | Soft |
| 28 | 6.7 | 65.7 | 83.3 | 41.7 | Medium Soft |
| 30 | 7.6 | 74.5 | 95.8 | 47.9 | Medium Soft |
| 32 | 8.4 | 82.4 | 108.3 | 54.1 | Medium Soft |
| 34 | 9.6 | 94.1 | 122.0 | 61.0 | Medium Soft |
| 36 | 10.6 | 104 | 135.5 | 67.7 | Medium Soft |
| 38 | 11.7 | 115 | 151.5 | 75.7 | Medium Soft |
| 40 | 12.9 | 127 | 168.3 | 84.2 | Medium Soft |
| 42 | 14.0 | 137 | 187.2 | 93.6 | Medium Soft |
| 45 | 16.0 | 157 | 218.0 | 109.0 | Medium Soft |
| 48 | 18.2 | 178 | 248.6 | 124.3 | Medium Soft |
| 50 | 19.5 | 191 | 269.1 | 134.6 | Medium Soft |
