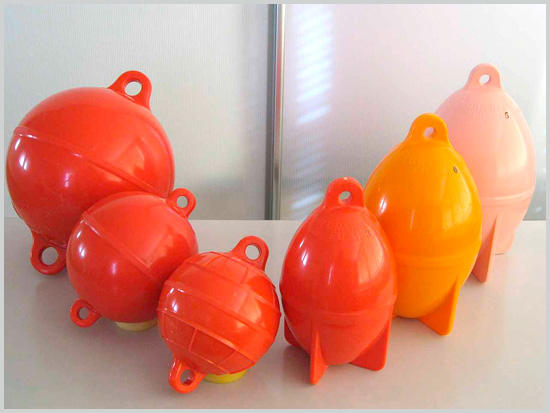

Tuna Long Line Float

UBE Long Line Float

Float for tuna long line fishing
Material: ABS resin

Shape:

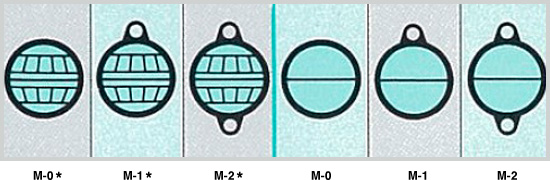

M-0: Ball with no eyes; M-1: Ball with an eye; and M-2: Ball with two eyes

Item No. Diameter Depth Weight Bouyancy Bouyancy Dia.of Hole No. of
floats
per
package
(pcs)		 Color
(mm) (m) (kg) (N) (kgf) (mm)
CT-20M-0* 199 300 0.68 34.9 3.56 - 20 RED
CT-20M-1* 199 300 0.70 34.9 3.56 25 20 RED
CT-20M-2* 199 300 0.71 34.9 3.56 25 20 RED
CT-243M-0 237 300 1.22 59.0 6.02 - 12 RED
CT-243M-1 237 300 1.23 59.0 6.02 22 12 RED
CT-243M-2 237 300 1.25 59.0 6.02 22 12 RED
CT-273M-0 269 300 1.50 85.7 8.75 - 8 RED
CT-273M-1 269 300 1.55 85.7 8.75 22 8 RED
CT-273M-2 269 300 1.59 86.5 8.82 22 8 RED
CT-303M-0 296 300 1.98 118.5 12.09 - 6 RED
CT-303M-1 296 300 2.00 118.5 12.09 21 6 RED
CT-303M-2 296 300 2.04 118.5 12.09 21 6 RED
CT-363M-0 357 300 4.10 199.8 20.39 - 4 RED
CT-363M-1 357 300 4.15 199.8 20.38 38 4 RED
CT-363M-2 357 300 4.25 199.7 20.38 38 4 RED
CT-423M-0 417 300 6.80 313.7 32.01 - 2 RED
CT-423M-1 417 300 6.90 313.6 32.00 39 2 RED
CT-423M-2 419 300 7.00 313.6 32.00 39 2 RED

* Floats are ribbed on the surface.

(Tolerance±3%)

Shape:

Oval with fins and an ear

Item No. Size Depth Weight Bouyancy Bouyancy Dia.of Hole No. of
floats
per
package
(pcs)		 Color
(mm) (m) (kg) (N) (kgf) (mm)
FU-193 192x340 300 1.10 44.7 4.56 21 8 RED
FU-198 192x338 800 1.55 40.8 4.16 21 8 YELLOW
FU-236 230x402 600 2.38 74.6 7.61 22 6 ORANGE
FU-263 260x440 300 2.55 112.4 11.47 22 6 RED
FU-265 260x443 500 3.15 105.1 10.73 22 6 PINK

(Tolerance±3%)
