Knotted Netting

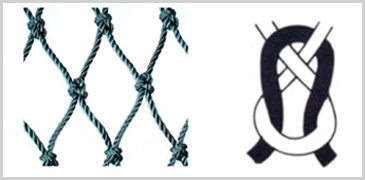

Twisted Knotted Polyethylene Netting
The netting consists of three twines twisted together and has both good breaking strength and sufficient elasticity. It is break and tear resistant.
It is easy to repair and relatively inexpensive.
From manufacturing of polyethylene fibers to netting and heat processing, the product is manufactured at the fully integrated factory of the Nichimo Group.
Material: High-tenacity polyethylene
Color: Dark gray, blue or moss green
Construction: 3 strand
Direction of twist: Z twist
Mesh: Diamond mesh
| Item No. |
Twine Size |
Diameter |
Minimum Mesh Size |
Maximum Mesh Size |
Mesh Depth | Maximum Length per Bale |
|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (m) | |||
| PWZ24 | 24ply | 1.7 | 23 | 240 | 49.5 / 50.5 / 99.5 / 100.5 | 75 |
| PWZ30 | 30ply | 1.9 | 43 | 240 | 49.5 / 50.5 / 99.5 / 100.5 | 100 |
| PWZ45 | 45ply | 2.3 | 43 | 240 | 49.5 / 50.5 / 99.5 / 100.5 | 80 |
| PWZ60 | 60ply | 2.7 | 43 | 240 | 49.5 / 50.5 / 99.5 / 100.5 | 60 |
| PWZ75 | 75ply | 3.0 | 43 | 240 | 49.5 / 50.5 / 99.5 / 100.5 | 60 |
| PWZ90 | 90ply | 3.3 | 60 | 300 | 49.5 / 50.5 / 99.5 / 100.5 | 60 |
| PWZ120 | 120ply | 3.7 | 60 | 300 | 49.5 / 50.5 / 99.5 / 100.5 | 60 |
| PWZ150 | 150ply | 4.1 | 75 | 300 | 49.5 / 50.5 / 99.5 / 100.5 | 60 |
| PWZ180 | 180ply | 4.5 | 75 | 300 | 49.5 / 50.5 / 99.5 / 100.5 | 40 |
| PWZ210 | 210ply | 4.9 | 75 | 300 | 49.5 / 50.5 / 99.5 / 100.5 | 40 |
| PWZ240 | 240ply | 5.2 | 75 | 300 | 49.5 / 50.5 / 99.5 / 100.5 | 30 |
| PWZ330 | 330ply | 6.1 | 90 | 300 | 49.5 / 50.5 / 99.5 / 100.5 | 30 |
| PWZ480 | 480ply | 7.3 | 100 | 300 | 49.5 / 50.5 / 99.5 / 100.5 | 24 |
Maximum length per bale
= (unit mesh size) × (total number of meshes per bale in the mesh length direction)
When you order the product, please specify what mesh size, twine size and bale dimensions (mesh depth and length) you need.
